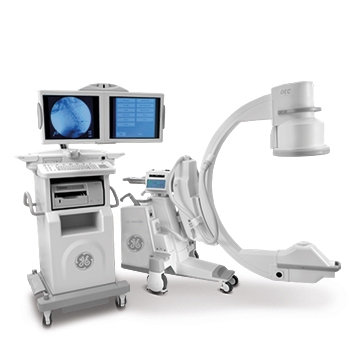

OEC9900 C-Arm
OEC9900 C-Arm
Product Description
The OEC 9900 is designed to deliver superb clinical images during both simple and challenging imaging cases, with fast and easy positioning.
- Details
- Resources
This machine is available for lease and purchase.
Key Features
- 9" Flat Panel Image intensifier
- LCD Screens
- SmartView pivot joint for better imaging angles
- SmartMetal distortion control
- Dynamic Range Management (DRM)
- Motion Tolerant Subtraction (MTS)
- 1k x 1k high resolution imaging
- Printer
- DICOM 3.0 internal interface
X-ray Generator
- 60 kHz high frequency
- 15kW power
- Up to 120 kVp
- Up to 75mA for radiographic film exposure
- Continuous high level fluoro (HLF) up to 20mA
- Digital spot up to 75 mA
- Full power from standard wall outlet
- Patented battery buffered design
X-ray Tube
- Rotating anode x-ray tube
- 0.3mm and 0.6mm focal spots
- Anode heat capacity: 300,000 HU (per IEC 60613)
- Anode cooling rate: 85,000 HU/min.
- Housing heat capacity: 1,600,000 HU
- Standard housing cooling 22,500 HU/min.
